Filluck 320PCS Heat Shrink Spade Connectors, 22-10 AWG Quick Connect Disconnect Wire Connectors, Female & Male Insulated Electrical Crimp Terminals Kit for Automotive Marine Industrial

$35.99
$35.99
(-0%)
Free Shipping

Free Shipping On All Orders From U.S.A

Free Returns
Learn More.
One-year warranty

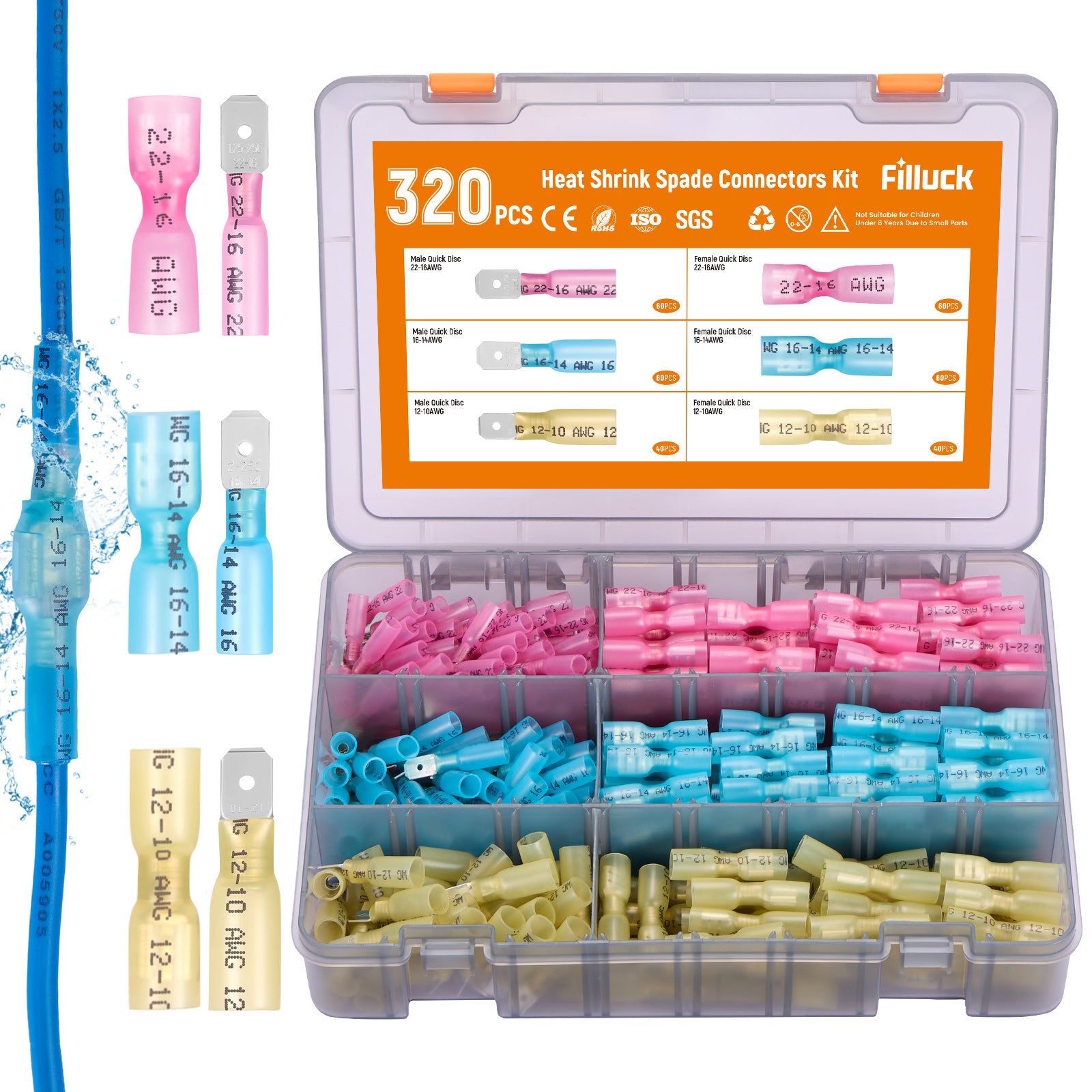

Filluck 320PCS Heat Shrink Spade Connectors, 22-10 AWG Quick Connect Disconnect Wire Connectors, Female & Male Insulated Electrical Crimp Terminals Kit for Automotive Marine Industrial

Filluck 320PCS Heat Shrink Spade Connectors, 22-10 AWG Quick Connect Disconnect Wire Connectors, Female & Male Insulated Electrical Crimp Terminals Kit for Automotive Marine Industrial

$35.99

Filluck 320PCS Heat Shrink Spade Connectors, 22-10 AWG Quick Connect Disconnect Wire Connectors, Female & Male Insulated Electrical Crimp Terminals Kit for Automotive Marine Industrial

$35.99

Product details


Filluck heat shrink spade connectors feature marine-grade tinned copper with 99.9% pure copper core for superior conductivity and corrosion resistance. Quick connect disconnect design allows fast plug-and-play installation. 3:1 heat shrink tubing provides a waterproof, vibration-proof seal—no soldering required. Flared entries ensure easy wire insertion, transparent sleeves allow clear crimp inspection, and color-coded sizes (AWG 22–16, 16–14, 12–10) with gauge markings enable quick identification. Compatible with stranded and solid wire, this all-in-one kit delivers reliable connections for automotive, marine, industrial, and household use.

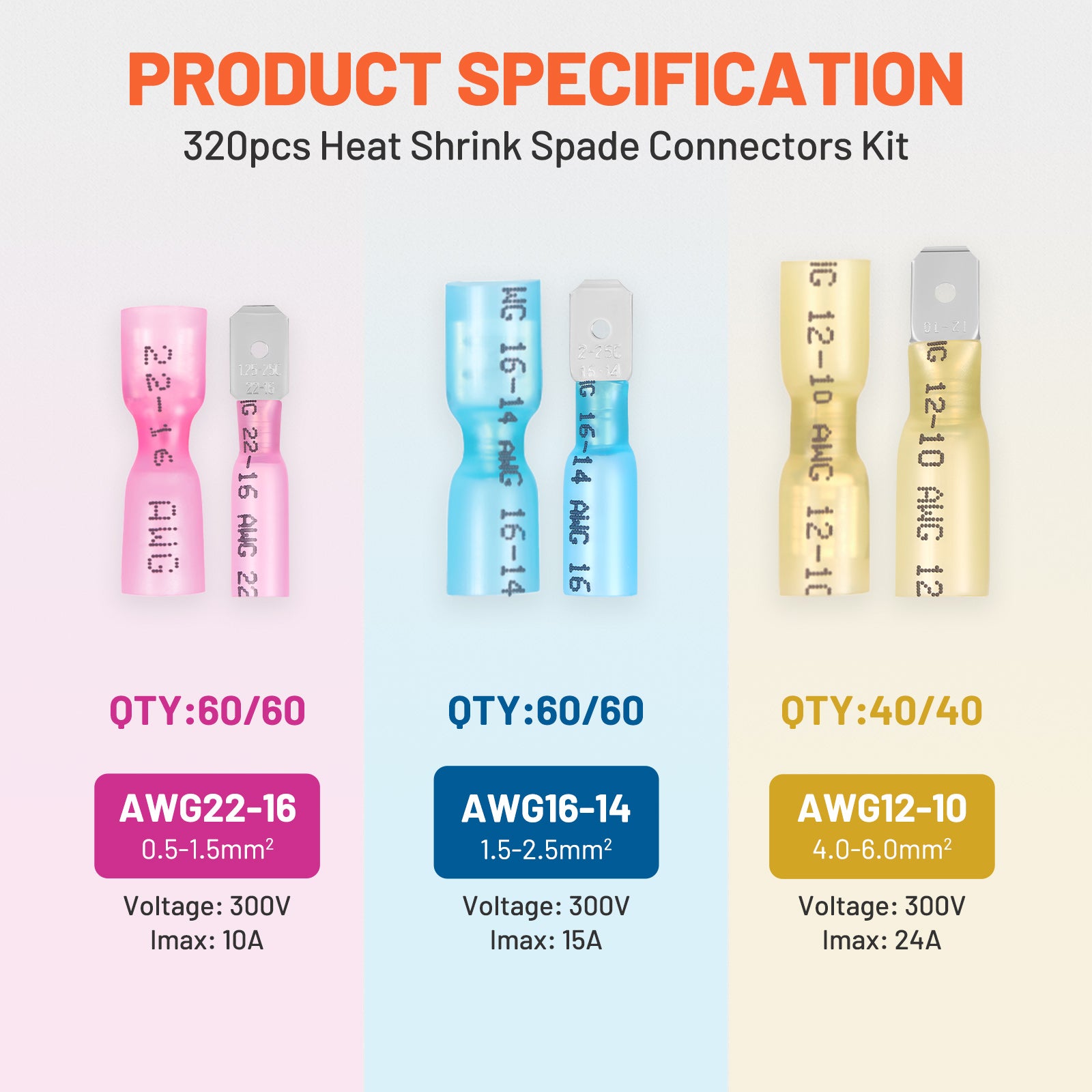

Specifications:

Material: Tinned Red Copper + PVC

Safety Certified: IS0 9001 / RoHS / SGS Certificated / CE Certificated/Waterproof

Wire Gauge: AWG 22-16 / AWG 16-14 / AWG 12-10

Color: Pink/Blue/Yellow

Thickness: 0.7mm/0.8mm/1.0mm

Quantity: 320 pcs

Packaging Weight: 0.99 lbs

Storage Box Size: 8.27"X 5.71"X 1.42" (L X W X L)

Packaging Includes:

40 x Yellow Male/Female Disconnect Terminals: Cable cross section 4.0-6.0mm ² (A.W.G.:12-10)

60 x Blue Male/Female Disconnect Terminals:Cable cross section 1.5-2.5 mm² (A.W.G.:16-14)

60 x Pink Male/Female Disconnect Terminals:Cable cross section 0.5-1.0 mm²(A.W.G.:22-16)

Storage Box * 1

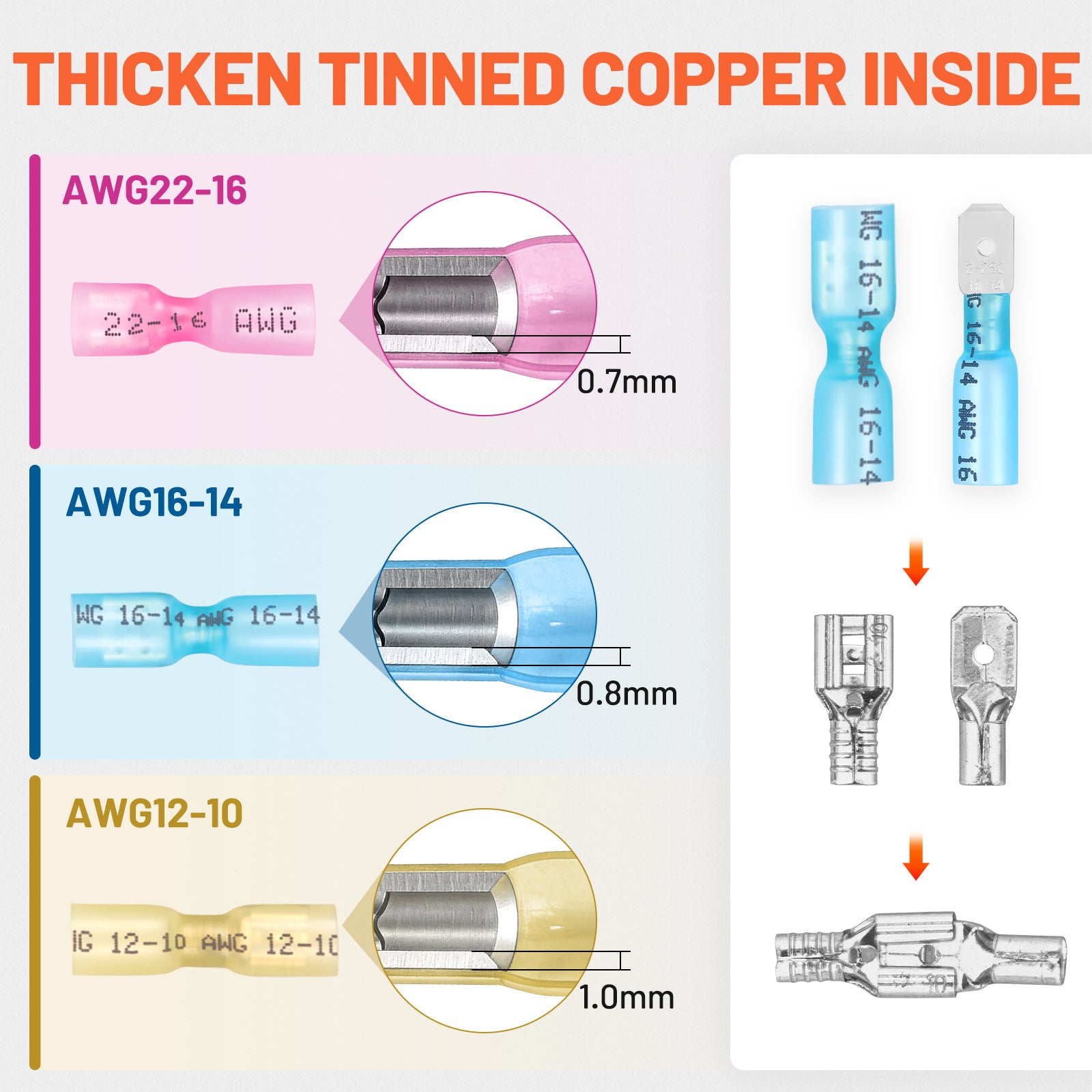

  • ✔️【Excellent Conductivity & Corrosion Resistance】Filluck spade connectors are made of marine-grade tinned copper, delivering superior electrical performance. The inner core uses 99.9% high-conductivity pure copper to ensure low resistance and efficient power transmission. The precision tinning process creates a dense anti-oxidation layer, making the square terminals durable and resistant to saltwater and moisture. Even in harsh environments such as engine compartments or marine cabins, they remain rust-free and corrosion-resistant for long-lasting, reliable connections.

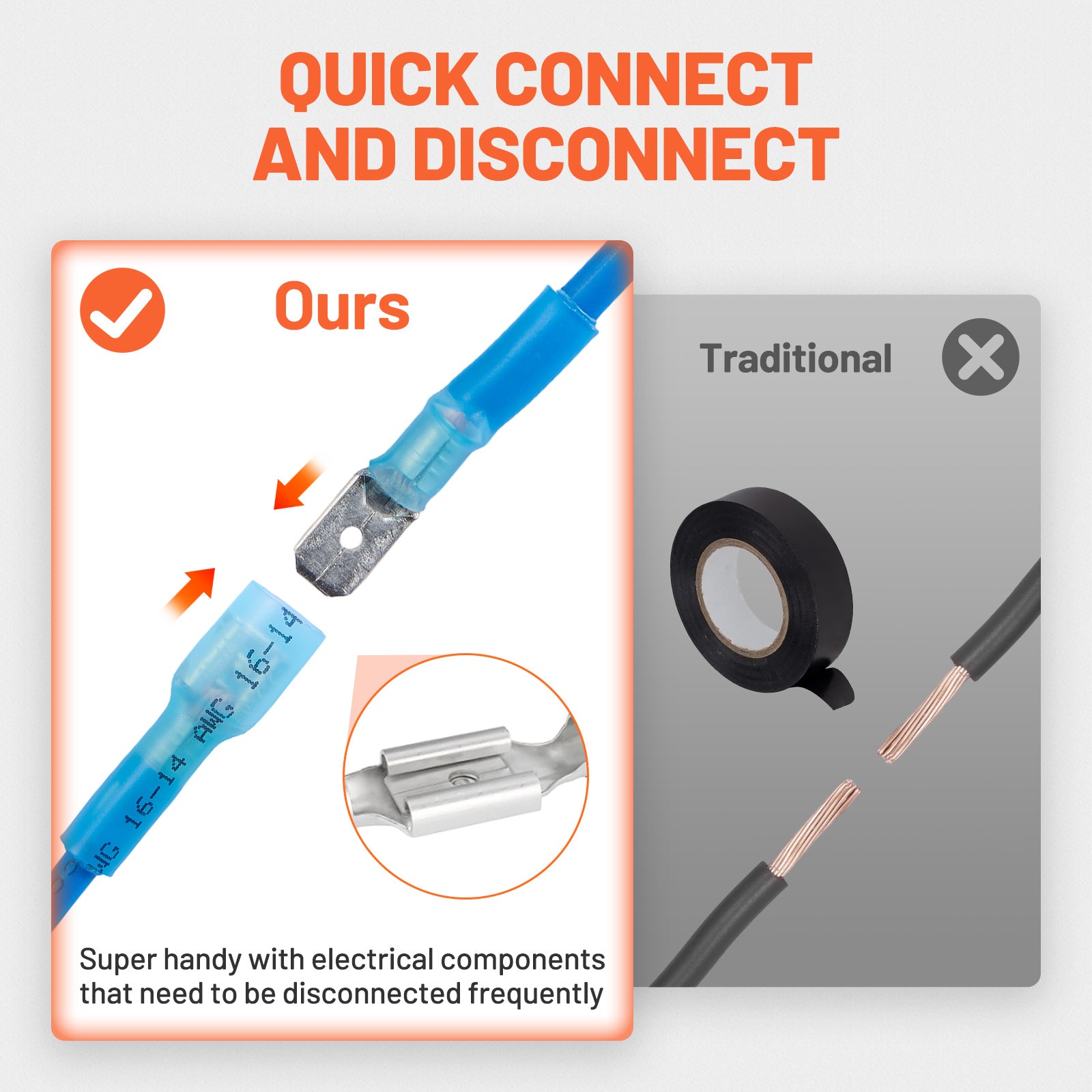

  • ✔️【Quick Connect & Disconnect Design】The male and female spade terminals are designed for easy plug-and-play operation. They allow fast connection and separation, making them ideal for applications that require frequent access. Built with a rugged, impact-resistant structure, these battery terminals resist bending or loosening over time.
  • ✔️【Waterproof Insulation Protection】These heat shrink wire connectors feature flame-retardant PVC insulation and a thickened 3:1 heat shrink tube that will not puncture or crack during crimping. When heated, the inner adhesive melts and flows into wire gaps, forming a strong, sealed layer. From physical insulation and flame retardancy to complete waterproofing, these connectors ensure all-around protection.
  • ✔️【User-Friendly Design for Easy Installation】The bullet connectors feature a flared opening that makes wire insertion effortless. The widened barrel maximizes contact area for stable conductivity. A transparent insulation sleeve allows for clear visual inspection to confirm proper crimping. Installation is simple: strip, crimp, and heat. No soldering is required. Just apply even heat with a heat gun to fully seal the adhesive, ensuring a secure connection that stays locked even under engine vibration or tough driving conditions.
  • ✔️【Easy Identification】This wire connectors kit comes in 3 color(AWG 22–16, 16–14, 12–10) to cover a wide range of wiring needs. Each barrel terminal is clearly marked with the wire gauge for quick and accurate selection—just measure the wire and match the marking. The included multi-compartment storage case keeps each size neatly organized, with a handy gauge reference printed on the case for efficient access and return.
  • ✔️【Universal Compatibility】Our battery terminal connectors work with both stranded and solid wire, making them suitable for everything from precision research to everyday repairs. Whether you're fixing navigation equipment on a boat, upgrading a motorcycle's electrical system, replacing sensors in a car engine bay, or handling home electrical wiring, these electrical connectors provide a stable and reliable solution.
